Impact Tester Systems – Model ITB2A

Leverage our experience with designing and fabricating a complete impact test system.  Do not waste time trying to figure out all the components required to perform the testing, and eliminate any uncertainty that the test complies with the standard testing requirements.  Ergonomics offers a turnkey solution that can be used for testing immediately upon delivery.

The Impact Tester, Model ITB2A, has been developed in accordance with product safety standards IEC 60065 and IEC60950, amongst others, and can be used for many other applications. It is used to determine the effectiveness of insulating enclosures and barriers and anywhere the robustness of mechanical assemblies is important. The Impact Test Ball ITB2 is made of chrome plated steel, providing durability and corrosion resistance.

Most importantly, Our ISO/IEC 17025 accredited laboratory calibrates each of these items to confirm strict compliance to all necessary requirements.  ISO/IEC 17025 certificates are available for all the products that Ergonomics offers.

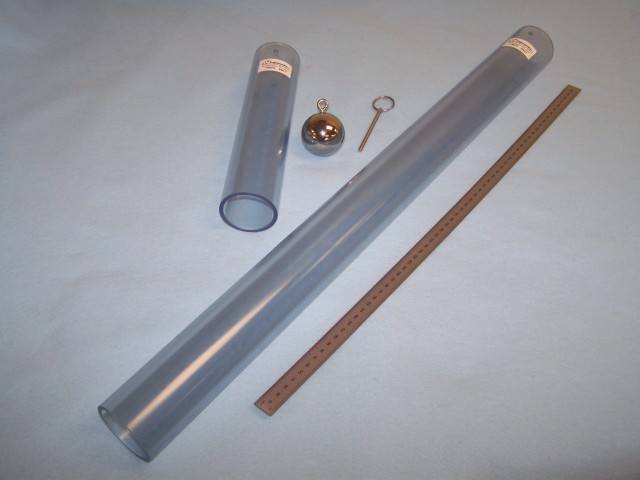

Specifications

Impactor: 50.8mm (2 Inches)
Impactor Mass: 540 grams nominal
Rule: 600mm (24 Inches)
Tube: (1) Long & (1) Short Clear Tube
Drop Pin

Applicable IEC and UL Standards

IEC 60065 60950
