Torque Withdrawal Test

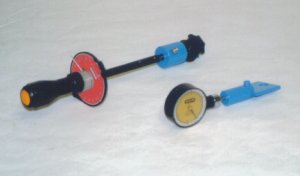

Tests the fixing of mains cord. This equipment is divided into two types: one for the torque test and one for the withdrawal test.
This device tests the fixing of mains cord. The equipment is divided into two types. Read Clause 25.11 of JEC 335-1.
- There are two types of test equipment: torque testing and withdrawal testing.
- The Withdrawal test has a scale of 11 kg.(110 N)
- The Torque test has a scale of 0,5 Nm.
- Fixing devices for each type of test are included.
Specifications
- IEC: 335-1, Clause 25.11
- Weight: 2 kg. each
- Dimensions: 250L (mm)
