Vitrek Dielectric Tester

AC & DC Hipot plus insulation resistance and earth continuity all in one GPIB automated tester.

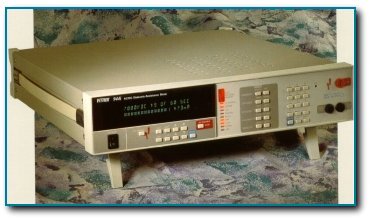

The Vitrek 944i combines AC dielectric strength testing (AC Hipot) with DC dielectric strength testing (DC Hipot), insulation resistance (to65 Gigohms) and earth continuity measurement all in one feature-rich automated instrument. This compact dielectric analyzer lets you measure four electrical safety test parameters from a single test connection-all with the touch of a button.
The Vitrek 944i delivers top performance and versatility for manufacturing test, product safety engineering, component evaluation, as well as research and development applications. You’ll find that the multi-function 944i is loaded with features that even the larger more expensive dedicated testers don’t offer. Powerful features including-Automatic calibration, built-in diagnostics, internal “watchdog” safety monitor, user memory for up to 100 test routines, arc detection and available interface package with IEEE-488.2, RS-232 and direct test results printout capability.
The intelligent choice for operator safety
The 944i with a high-impact injection molded front-end with no exposed metal parts to present a potential user shock hazard. We put in an internal “watchdog” safety monitor which automatically shuts down the output in the event of an inadvertent disconnect. And the Vitrek 944i boasts an impressive user programmable “Arc Detection” circuit, capable of shutting down the high voltage system within microseconds.
For added peace of mind the onboard diagnositcs of the 944i execute a complete check of all safety systems every time you power up.
World Class technology means reliability you can depend on
The Vitrek 944i provides increased performance and reliability when compared to discrete testers. Extensive use of ASIC, PAL and built-in test technologies make possible this high level of functionality with far fewer components than existing instruments.
Powerful yet easy to use
We’ve harnessed the power of the microprocessor to make this dynamic instrument simple and easy to operate. Specifically, the extensive use of menu prompting walks you through the test setup. Built-in user memory allows you to store, recall and edit up to 100 different test programs. All test parameters are fully user selectable-no hidden switches or pots to hamper operation.
The result is a clean, streamlined panel design that demands noticeable less effort to operate – and the unrivaled power to execute customized test routines at the touch of a button.
Capacity to excel
With its full 35mA sourcing capability, the Vitrek 944i possesses the horsepower required to drive today’s capacitively filtered circuits – loads which the 10mA to 25mA units just can’t handle. Yet, what sets the 944i apart from the rest is its ability to discriminate between in-phase and out-of-phase leakage currents.
This advanced feature enables you to measure the resistive current associated with insulation breakdown, the reactive component or the combination of both.
Features/Benefits
- AC & DC Hipot plus Insulation Resistance and ground continuity in a single feature rich compact instrument
- AC/DC Hipot to 5VK standard, 7 and 10 KVDC optional
- Easy to use full menu prompting, walks you through the test set-up
- Test database stores 200 test steps for easy recall
- Powerful 35mA Sourcing capability
- On-board phase detection measures “total”, “real” or “imaginary” leakage current
- Continuous Output frequencies from 50 to 100Hz
- IR measurement to 65Gig ohms
- Continuity measurement to 1 milli-ohm
- Leakage current measurement to 1 nano-amp
- Optional IF-4 Interface package includes GPIB, RS232, VICL & Printer Ports
- Separate Ramp & Dwell, Min & Max current limits
- Covers-on Automatic Calibration
- Built-in controls for HV scanner and Ground Bond Tester
- CE Mark Certified to EN61010
- Includes NIST Traceable Certification
- Three year extended warranty
- Made in the USA
Specifications
AC Dielectric Mode
AC Voltage Output
Range | Current | Accuracy |
100 to 500 VAC | 20 mA | 0.7% of output + 7.5V |
500 to 5000 VAC | 35 mA | 0.7% of output + 30V |
Output Frequency: 50Hz to 100Hz with 1Hz resolution independent of line power frequency.
Output Waveform: Digitally synthesized, low distortion sinewave.
AC Current Sensing (AC Leakage)
Range | Current | Accuracy |
13.00uA | 10nA | 0.5% of reading + 1uA |
1.300mA | 1uA | 0.5% of reading + 10uA |
40.0mA | 100uA | 0.5% of reading + 500uA |
Current Sensing: Resistive current (in-phase), reactive current (out-of-phase) or total current.
Voltage Coefficient: 100pA/V
DC DIELECTRIC MODE
DC Voltage Output
AC Current Sensing (AC Leakage)
Range | Current | Accuracy |
100 to 500 VDC | 20mA | 0.3% of output + 6V |
500 to 5,000 VDC | 35mA | 0.3% of output + 25V |
5,000 to 7,000 VDC* | 5mA | 0.3% of output + 75V |
Requires option *DC-7
DC Voltage Output with option DC-10
500 to 10,000 VDC 5mA 1% of output + 50V
DC Current Sensing (DC Leakage)
Range | Current | Accuracy |
1.800uA | 1nA | 0.4% of reading + 6nA |
18.00uA | 10nA | 0.3% of reading + 30nA |
1.800mA | 1uA | 0.3% of reading + 30uA |
40.0mA | 10uA | 0.3% of reading + 300uA |
Voltage Coefficient: 15pA/V
HIGH RESISTANCE MODE
(Insulation Resistance)
Resistance Range | Minimum Resistance | Test Voltage |
2.6 GΩ | 100 KΩ | 100 VDC |
13 GΩ | 500 KΩ | 500 VDC |
26 GΩ | 1 MΩ | 1,000 VDC |
65 GΩ | 2.5 MΩ | 2,500 VDC |
Accuracy: Combined uncertainty of DC Voltage Output + Current Measurement Accuracy
LOW RESISTANCE MODE
(Earth Continuity)
Full Scale | 8.5 ohms maximum including lead resistance. |
Resolution | 1 milli-ohms |
Test Current | 50 mA |
Lead Compensation | Automatic offset circuit “nulls” out two wire lead resistance |
Accuracy | 0.3% of reading + 30mΩ (up to 5Ω) |
General Specifications
Arc Detection Sensitivity | User selectable 3 microseconds to 30 microseconds |
Display | 40 character alphanumeric vacuum fluorescent |
High Voltage Indicator | Lightning bolt illuminated by independent output voltage monitor. Audible alarm sounds prior to voltage output. |
Voltage Resolution | 1 volt AC or DC |
Dwell Time Accuracy | +2 Seconds/minute, -500mS/minute |
Slew Rate | 10 Volts/second to 1999 volts/second, user selectable |
Limits | 10 Volts/second to 1999 volts/second, user selectable |
Limits | Test automatically aborts when digitally stored minimum or maximum limit is exceeded. |
Remote Interface Option “IF-4” | GPIB – IEE-488.2 Subset compatibleRS232C – 1200, 2400, 4800, 9600 Baud rate selectableParallel – IBM/Centronics compatibleVICL – Vitrek auxiliary unit control loop |
Accuracy | Stated specifications are bipolar and apply for one year within “5EC from calibration temperature (20 to 25EC). |
Temperature Coefficient | 0.1 times stated accuracy per EC beyond calibration temperature window |
Calibration | Traceable to the National Institute of Standards and Technology (NIST). Automatic “Covers on” calibration, internal or external. Calibration constants stored in non-volatile memory. |
Warm up Time | 30 minutes |
Operating Temperature | 0°C to 50°C |
Humidity | 90% RH, 0° to 40° C |
Power | 115/230 VAC + 10%, 350 VA Max |
Dimensions | 89mm H x 432mm W x 457mm D (3.5″ H x 17″ W x 18″ D |
Weight | 14Kg (34 lb.) Net / 18Kg (40 lb.) shipping |
