Test Pin Probe – Model TPP15

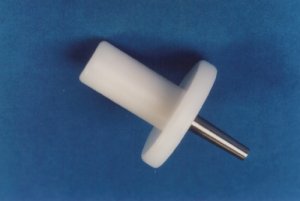

This high quality precision pin probe is supplied in accordance with all IEC standards listed below. The Test Pin Probe, Model TPP15, is used to test for accessibility of small objects and meets IEC, CSA and UL requirements. Ergonomics designs and manufactures these probes in our own facilities, ensuring top quality parts at a competitive price and always in stock. The probe is made of durable stainless steel with a Delrin® handle. The stainless steel pin is 3 mm in diameter at the tip. It is tapered over a 15 mm length to finish at 4 mm in diameter at the handle. Our ISO/IEC 17025 accredited laboratory calibrates each of these items to confirm strict compliance to all necessary requirements. ISO/IEC 17025 certificates are available for all the products that Ergonomics offers.

Applicable IEC and UL Standards

IEC 60950-1 Figure 2b
IEC 61032 Figure 9 Test Probe 13
IEC 60601 Figure 8
