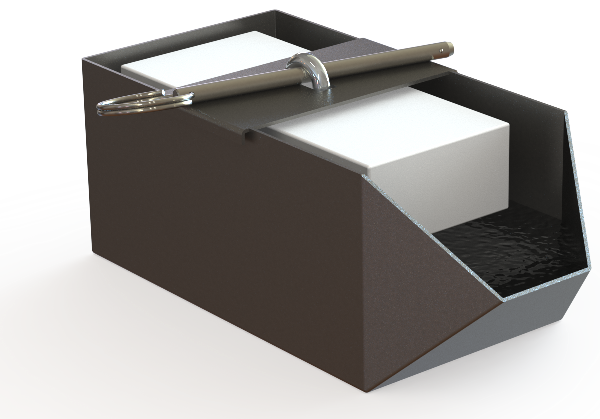

Water Spillage Apparatus for testing refrigerating appliances.
It consists of the vessel, removable bridge support, release pin, and displacement block.
- Displacement block volume: 140 ml ± 5 ml.
- Displacement block mass: 200 g ± 10 g.
- Displacement block dimensions: 112 mm by 50 mm by 25 mm.
- The dimensions of the vessel are inside dimensions as defined in standard IEC 60335-2-24. Tolerance on inside dimensions is ±2 mm.
- Approximate overall dimensions – 15.5 cm by 7.3 cm by 6.3 cm high.
- Material is nickel plated brass.
