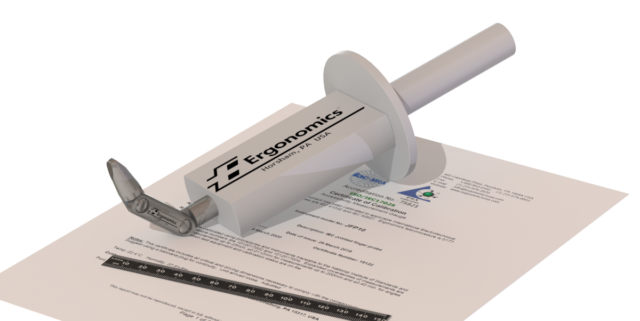

Jointed Finger Probe – Model JFP10

Model: JFP10
Standard: Standard:IEC 62368-1, Figure V.2; IEC 61032 Figure 2, Test Probe B; IEC 60529, Figure 1; IEC 60950, Clause 2.1.1.1b Figure 2A; IEC 60601-1:2005, Figure 7; IEC 61010-1:2001, Figure B.2; IEC UL 1450, Figure 12.4; IEC 60335-2-3, Clause 21.

Read More

This is a precision probe made in accordance with all IEC standards listed below. It is also used for Canadian and USA standards. It features a palm simulator and a restricted joint movement, which simulates the characteristics of the human hand. The finger is made of stainless steel and the rest of the instrument is

Amusement Ride Machine Probe

Model: AP75

Read More

This is a 75mm sphere used for testing kiddie rides and driving simulators according to IEC 60335-2-24, clause 20.2. It is made of aluminum to conserve weight.

Amusement Ride Machine Probe

Model: AP150

Read More

This Amusement Machine Probe is a 150mm wooden sphere used for testing kiddie rides and driving simulators according to IEC 60335-2-82, clause 20.2. It is made of wood to conserve weight.

Foot Probe

Model: FP11
Standard: IEC 60335-2-107; IEC 60335-2-92; EN 50636-2-107, Figure 102

Read More

For Standards IEC 60335-2-92, UL 82, and UL 1447.

Unjointed Finger Probe – Model UFP20

Model: UFP20
Standard: Standard:IEC 60950; IEC 61010-1:2001; IEC 60601; IEC 60335

Read More

This high quality precision probe, Model UFP20, is supplied in accordance with all IEC standards listed below. It is also used for CSA and UL requirements. The Unjointed Finger Probe is made for forceful insertion where the flexibility of the Jointed Finger Probe, Model JFP10, would be difficult. Ergonomics designs and manufactures these probes in

Test Pin Probe, 15 mm

Model: TPP15
Standard: IEC 60950-1-2005, Figure 2B; IEC 61032:1998, Figure 9, Test Probe 13; IEC 60601-1:2005, Figure 8

Read More

Test Pin Probe – 15 mm, Used to test for accessibility of small objects and meets IEC, CSA and UL requirements.

Test Thorn Probe

Model: TTP80
Standard: IEC 61032-1998, Figure 16, Test Probe 41; 60335-2-9, Clause 29.3

Read More

For testing accessibility to hot and glowing parts.

Ball Pressure Apparatus

Model: BPA10
Standard: EN 61010-1-2001, Figure 8; IEC 60601-1, Figure 48; IEC 60335; IEC 60950

Read More

The Ball Pressure Apparatus is used to check the integrity of dielectric materials by exerting 20N force.

Base for Ball Pressure Apparatus

Model: BBA20
Standard: EN 61010-1-2001, Figure 8; IEC 60601

Read More

The Base for the Ball Pressure Apparatus supports the Ball Pressure Apparatus during testing. It is made of stainless steel, with a 2mm hole for thermocouple applications.

Sand for IEC60335-2-14 Clause 3.1.9.110

Model: Sand 20

Read More

Used as an insulating medium and for other safety testing applications. CORE 50 to 100 – 0.17mm to 0.25mm
